Berridge Zee-Lock

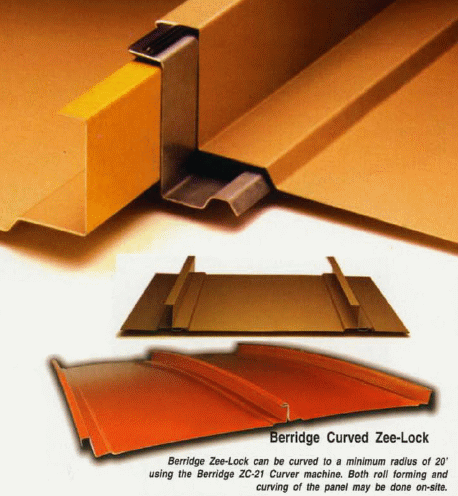

Archictectural/Structural Standing Seam Roof System for use over open purlin framing or solid sheathing. Berridge Zee-Lock can be curved to a minimum radius of 20' using the Berridge ZC-21 Curver machine. Both roll forming and curving of the panel may be done on-site.

• Extruded Patented Vinyl Weatherseal Strip
• Mechanically seamed sidelap
• 2" high standing seam sidelap
• Continuous lengths
• May be Double-Lock Seamed
• Corps of Engineers CEGS 07416 Approved
• Optional Striations available
• FMRC Approved & 1-120 Rated
• U.L. 90 & U.L. Fire Resistance Listed
• ASTM air & water tested
• ASTM E-1592 tested
